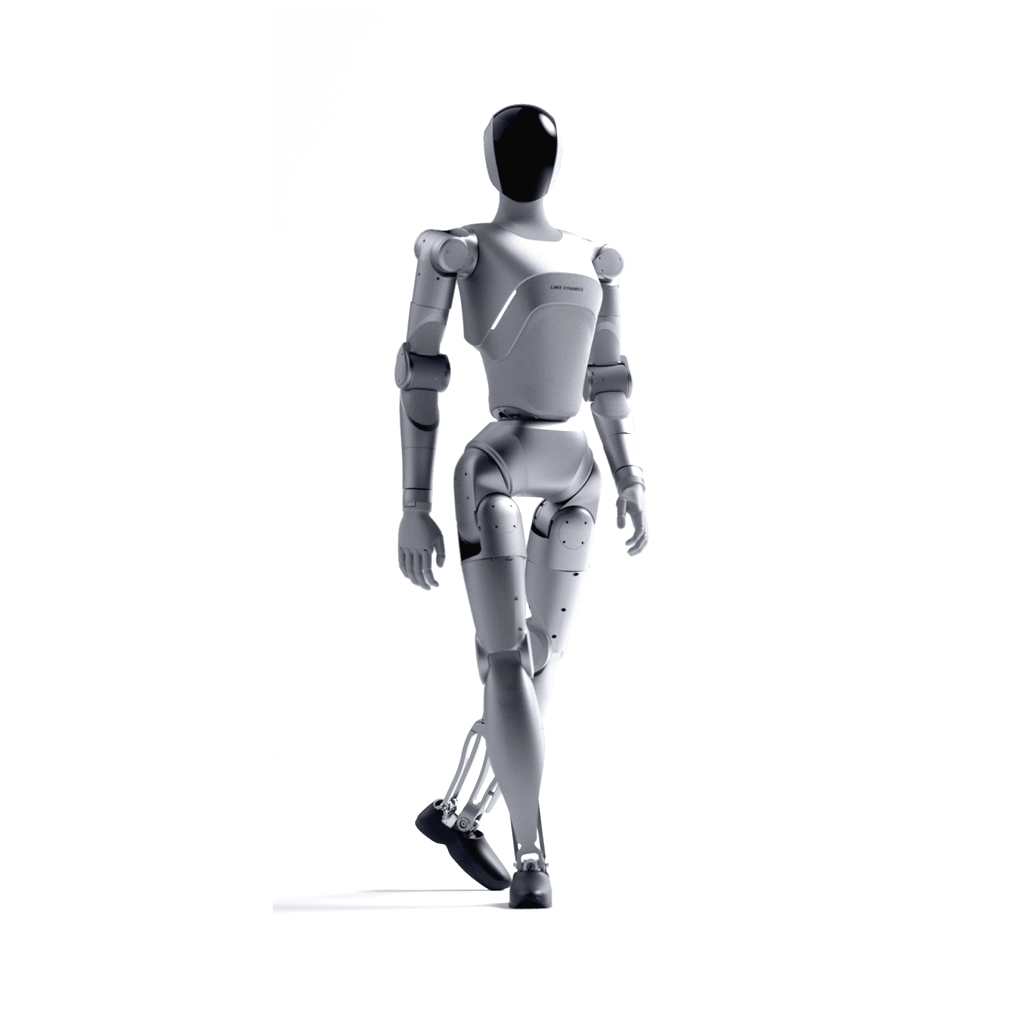

LimX Dynamics Luna
€ 75.999,00 excl. VAT
Naturally elegant, she naturally attracts attention.

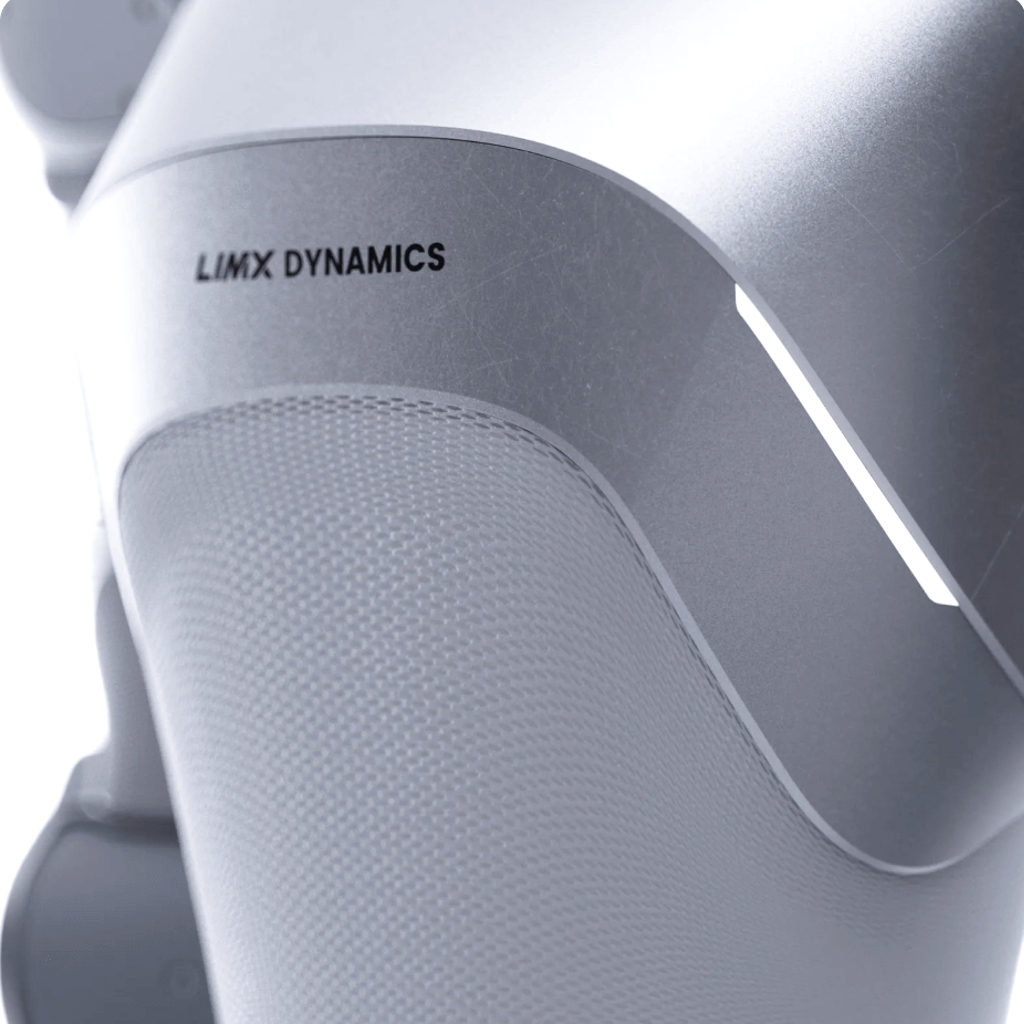

A completely new design language, inherently elegant. Covered in premium fabrics, softening the mechanical feel. With a full-size anthropomorphic proportion of 160cm, its graceful posture makes it the center of attention wherever it goes.
High dynamics, powerful performance.

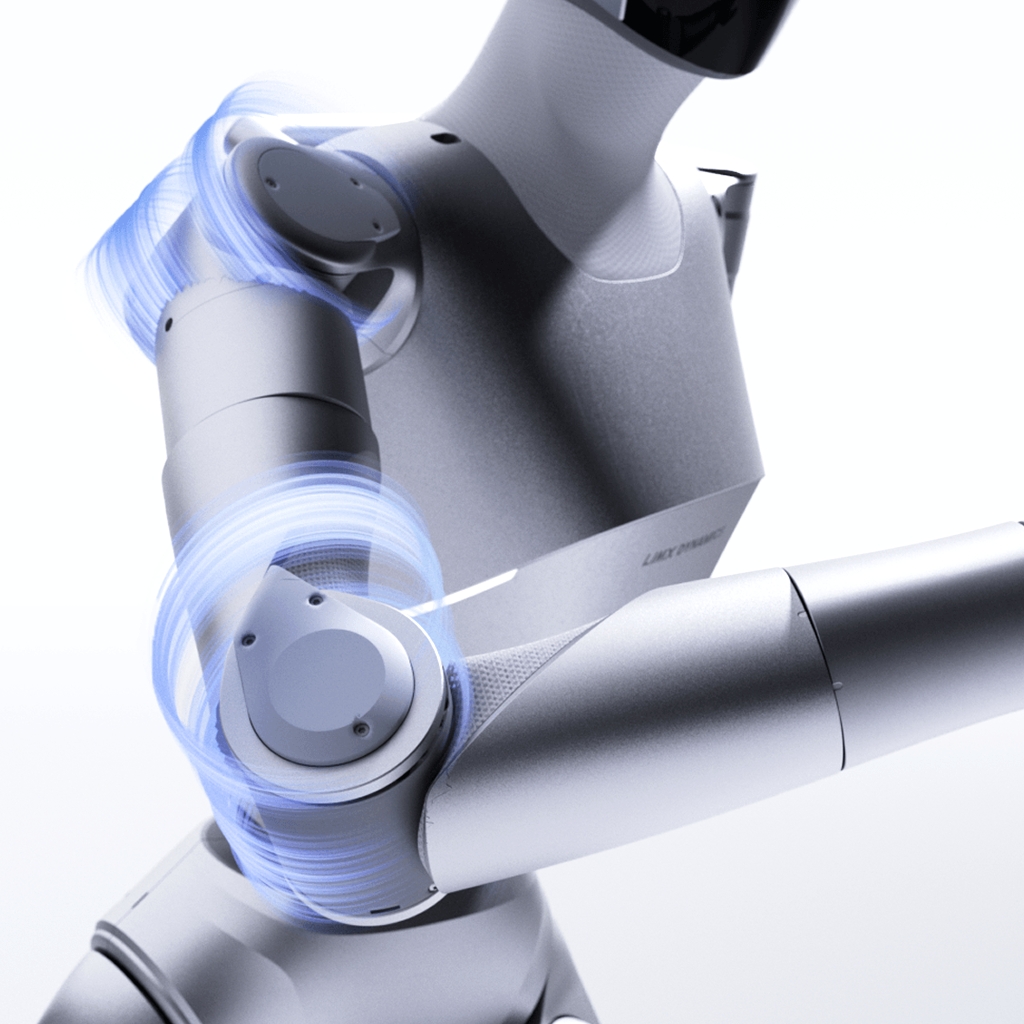

Equipped with the second-generation Sys 0 self-developed high-performance motion control engine and a brand-new upgraded joint motor, it can easily handle high-dynamic movements and is designed for multiple application scenarios.
Upgraded heat dissipation for double the battery life.
The thermal management technology has been further improved, and the joint surface does not get hot. The battery management system has been fully upgraded, significantly improving battery life and providing powerful performances for extended periods.
decline
0 %
Joint surface temperature
promote
0 %
Battery life
Multiple layers of protection ensure peace of mind.
From hardware redundancy to intelligent sensing, a multi-layered protection mechanism safeguards every interaction.
Active Fall Mitigation
Real-time posture monitoring stops motion immediately upon falling.
External Force Sensing
Operation stops automatically when external force or impact is detected.
Hardware E-Stop
A dedicated emergency stop button for immediate response in critical moments.
Safe Action Override
Supports real-time interruption and reset during movement or performance.
Specifications
Mechanical
-
Height 160cm
-
Shoulder Width 47cm
-
Arm Length (with hand) 69cm
-
Weight (with battery) 56kg
-
Active DoF 27
-
Leg DoF 6
-
Arm DoF 5
-
Waist DoF 3
-
Neck DoF 2
Controller
-
Remote Controller (with charging cable) ✓
-
Tablet ✓
End Effector
-
Humanoid Hand ✓
-
Fist-shaped Hand ✓
-
5-Finger Hand (6 DoF) Optional
Joint Range
-
Neck Joint P±30°、Y±45°
-
Shoulder Joint P-60°~175°、R-5°~110°、Y-90°~145°
-
Elbow Joint P-30°~137°
-
Wrist Joint Y±90°
-
Waist Joint P-45°~30°、R±30°、Y±90°
-
Hip Joint P-90°~175°、R-60°~90°、Y±90°
-
Knee Joint P+5°~140°
-
Ankle Joint P-35°~58°、R±25°
Cooling
-
Main Control Air Cooling
Communication
-
WiFi 6 ✓
-
Bluetooth ✓
Sensors
-
Self-Developed IMU 6-Axis
-
RGB Camera ✓
Battery
-
Slide-Out Battery Module (x2) ✓
-
Capacity 10,000mAh
-
Battery Life ≈4h
-
Recharging Method Direct charging / battery swapping
-
Charging Time ≈1h
-
Charging Input Voltage 110V-220V
-
Charger Output 58.8V 10A
Performance
-
Max Arm Payload 3kg
-
Max Walking Speed 5km/h
-
Max Motor Torque [1] 200N·m
-
Compute (Chip/RAM/Storage) Motion Control: RK3588 / 16G / 256G
-
Perception: RK3588 / 8G / 32G
Interaction
-
Facial Interaction Screen ✓
-
Microphone ✓
-
Speaker ✓
-
LED Light Strip ✓
Software
-
LimX UP [2] ✓
-
Dance Routines 20
-
Motion Actions 20
-
LimX Studio [3] ✓
-
Cloud-Based Motion Capture Training Platform ✓ (Subscription Required)
Other
-
Warranty 12 months
-
OTA Update ✓
-
Exclusive Skin ✓
-
Portable Transport Case ✓
