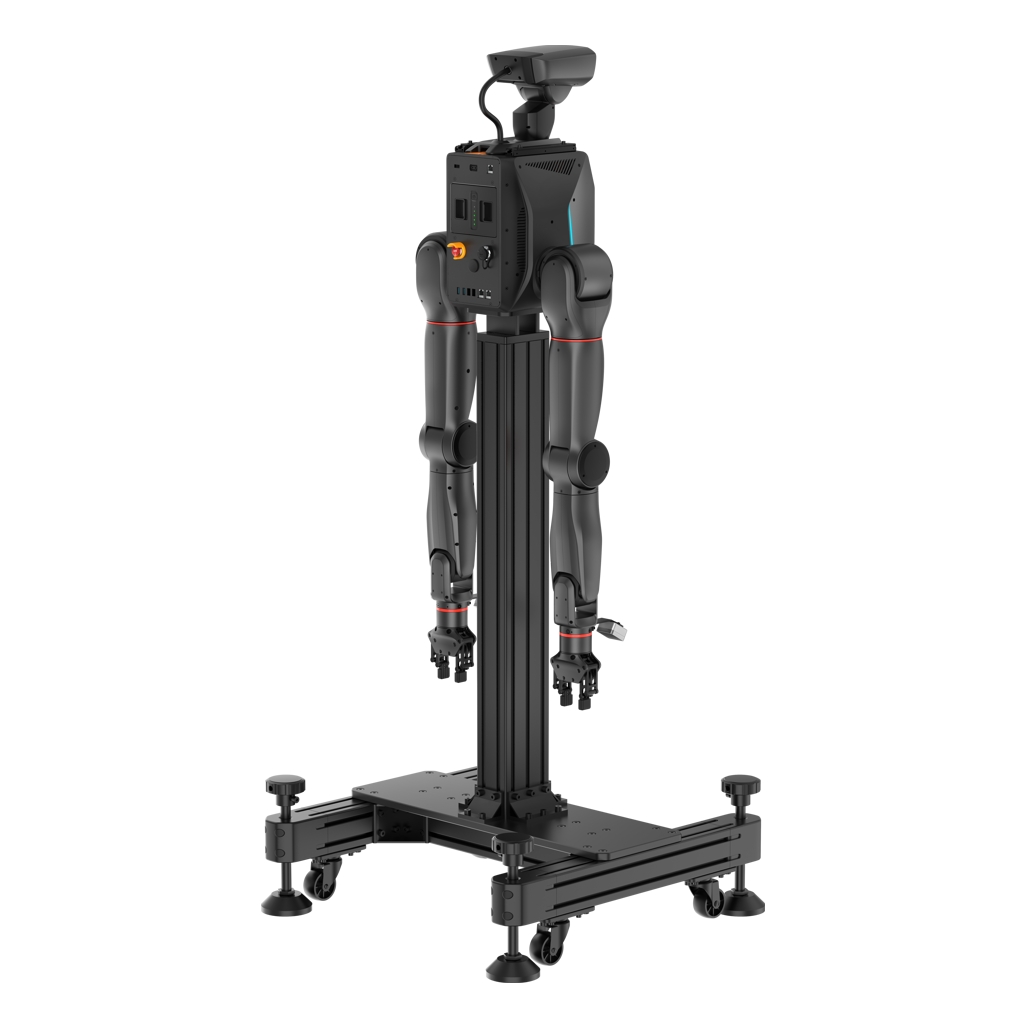

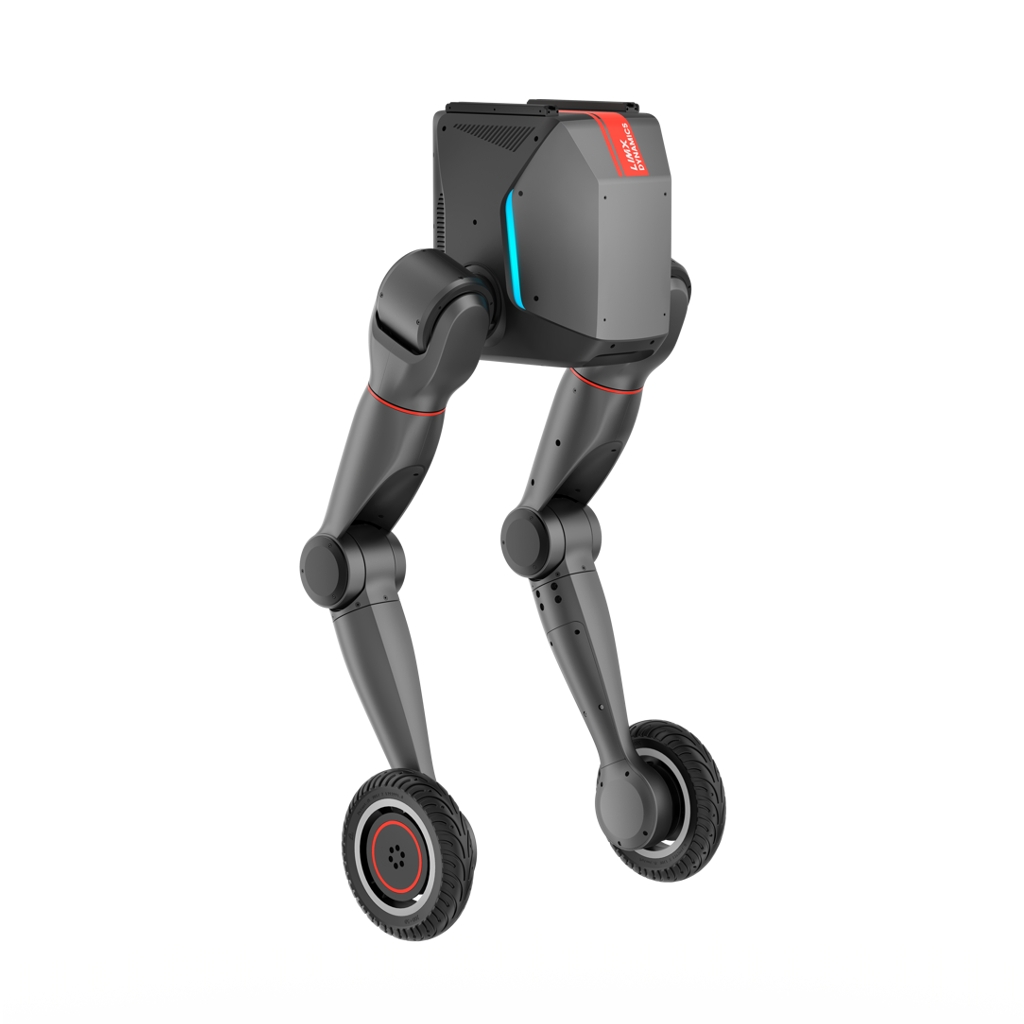

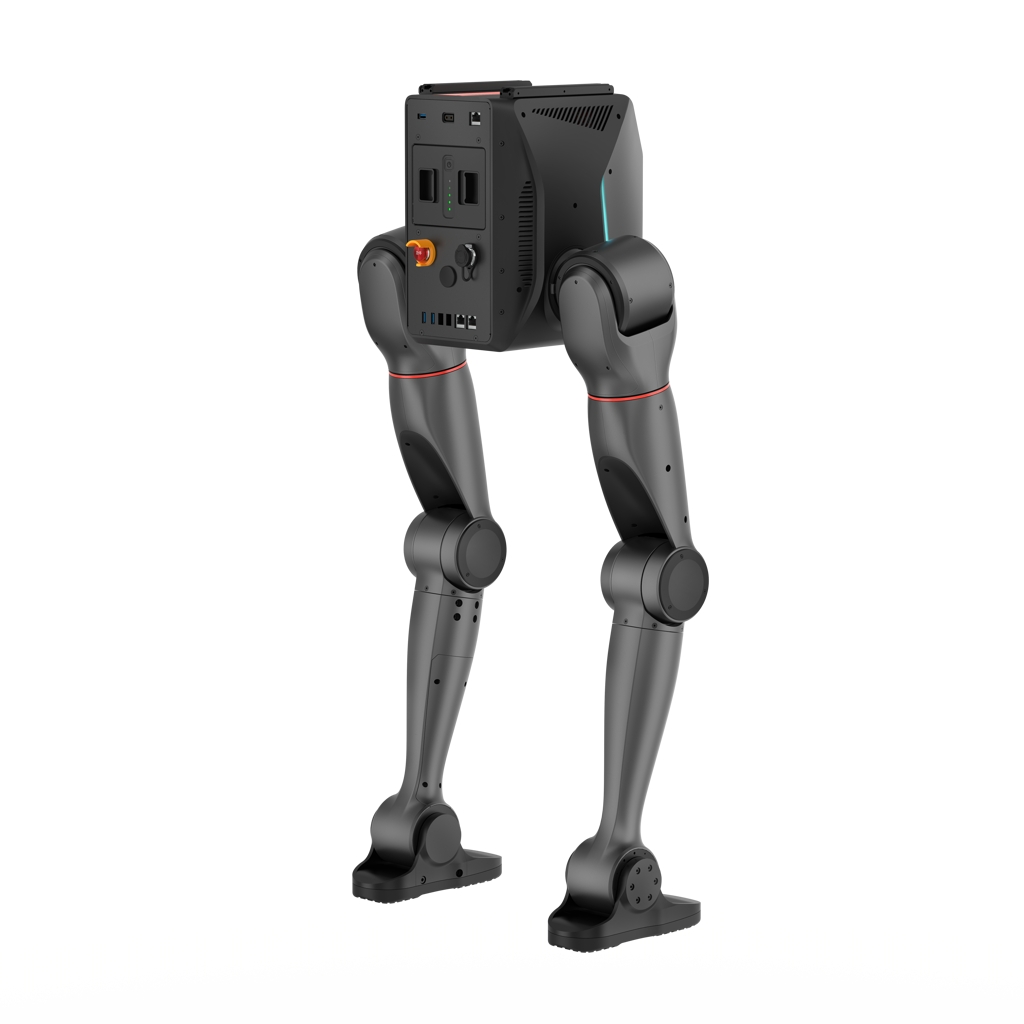

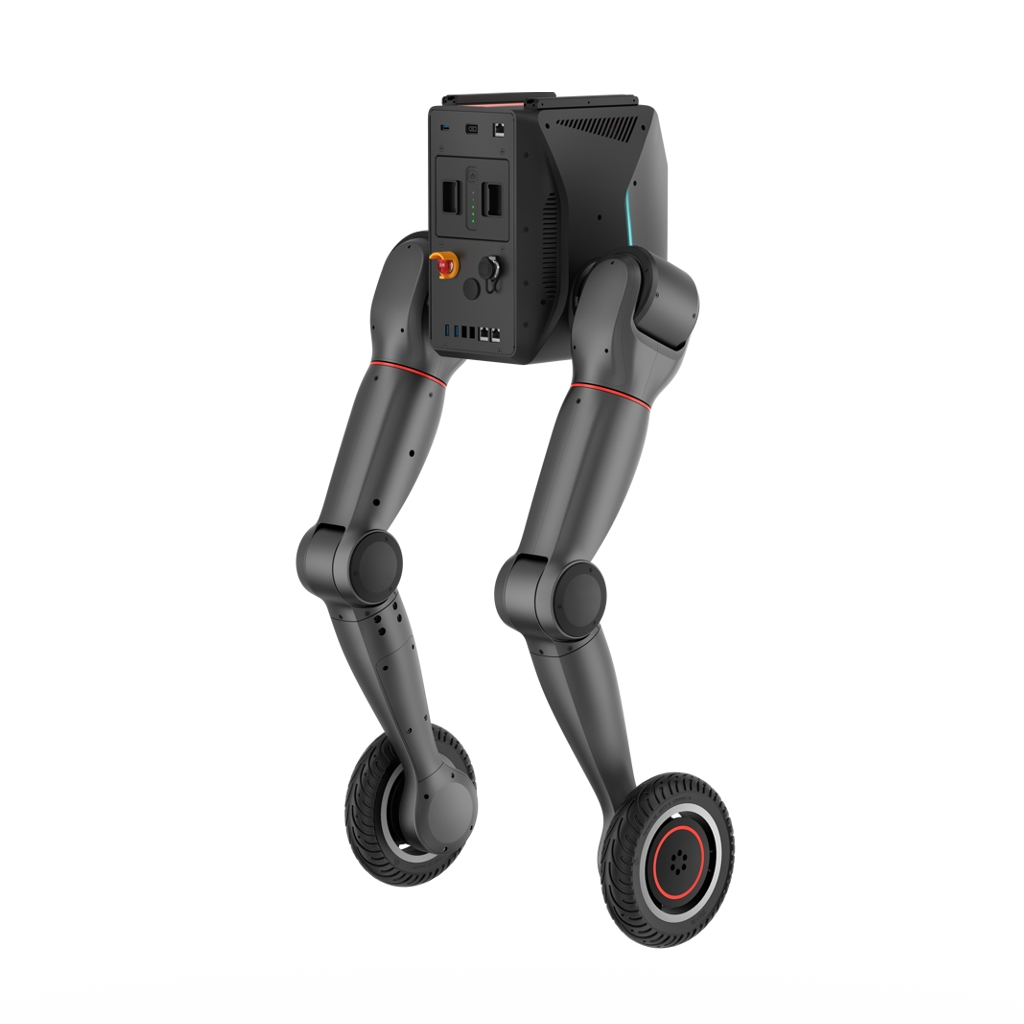

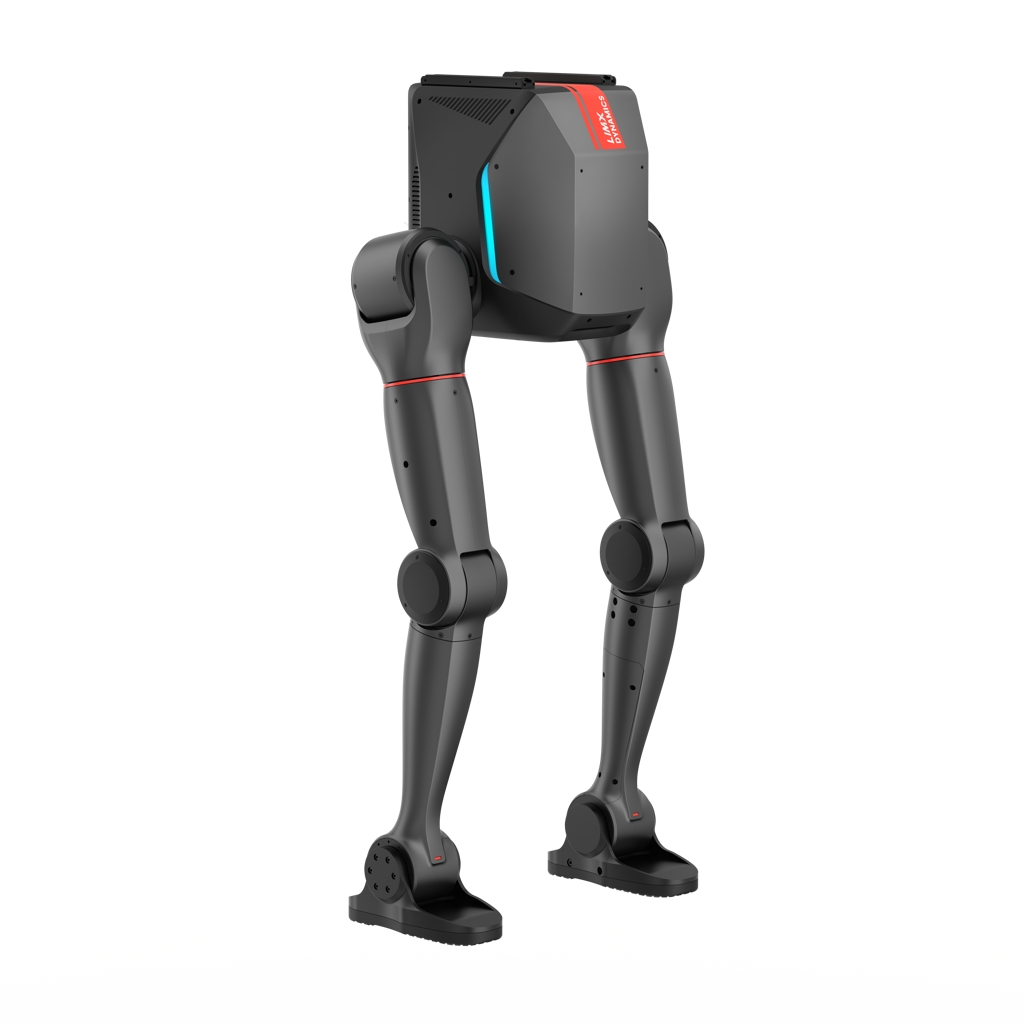

LimX Dynamics TRON 2

Multi-Form Embodied Robot – Tri-form configuration with Dual-arm, Bipedal, or Wheeled setups. 7-DoF per arm, 10kg payload.

From € 19.999,00 excl. VAT

Options

Warranty

Clear

Three-in-one new form

Free form, combine as you like.

Its unique modular architecture allows users to freely choose from three configuration components—two arms, two legs, and two wheels—to meet task requirements. It also supports the expansion of perception kits such as voice and vision, making it easy to build customized robot solutions.

TRON 2 Autonomous Mobile Operation Expansion Kit

Full-body motion control | All-scenario 3D perception | Minimal configuration for mobile operation

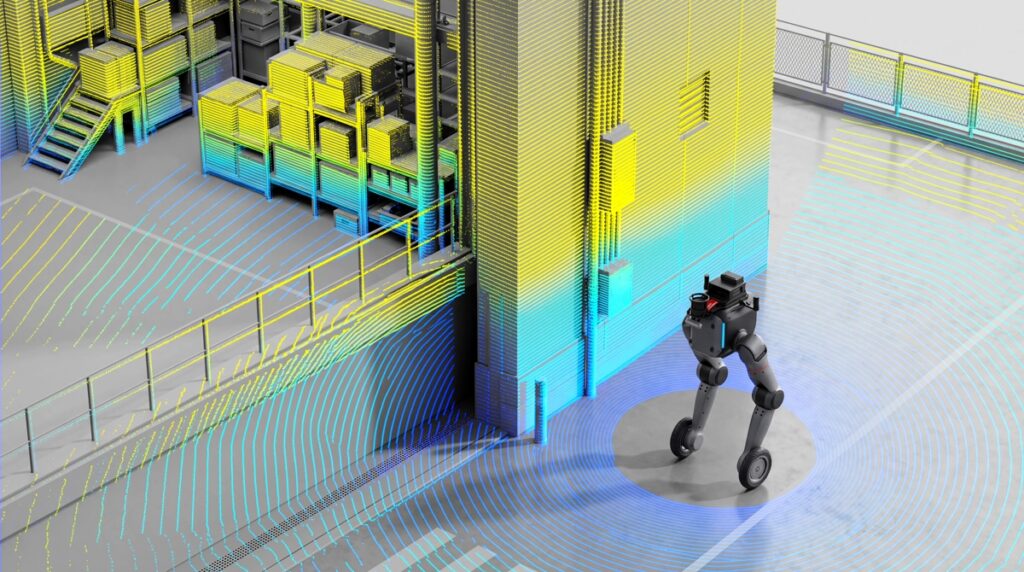

Indoor and outdoor, full-scene perception mapping

Industrial park roads, factory access roads, building corridors, and underground utility tunnels are often large in space, complex in structure, span multiple floors, and have unpredictable obstacle distribution. The TRON2 perception kit provides stable input for indoor and outdoor cross-floor 3D mapping, precise positioning, and navigation through its high-precision, high-line-count, and high-point-frequency point cloud capabilities, helping robots to more reliably understand their surroundings during inspections.

Mapping, positioning, and navigation – ready to use out of the box.

If industrial proof-of-concepts (POCs) need to be built step by step, starting with SLAM, positioning, etc., it will consume a lot of development time and slow down the POC and project verification progress. The TRON 2 perception kit encapsulates the navigation capabilities commonly used in inspections, allowing users to perform mapping, route configuration, and autonomous navigation verification out of the box.

High-energy dual arms,
VLA efficiently advanced.

Exceptional performance,
versatile for all scenarios.

10kg dual-arm load
With a 10kg dual-arm load capacity, it can be easily operated on a desktop.

Industry-leading operation and control algorithms
Industry-leading motion control algorithms ensure natural and balanced operation.

“Unobtrusive” remote control experience
With a low latency of 100ms, the remote control experience is seamless and intuitive, always at your fingertips.

Specifications

LimX Dynamics TRON 2 Standard Edition Education Edition
Material Aluminum alloy, plastic Aluminum alloy, plastic
Degrees of single arm 7 7
Degrees of single leg 5 5
Degrees of active vision head 2 2

Key Functions

LimX Dynamics TRON 2 Standard Edition Education Edition
Secondary Development - ✓
Sole/Wheeled Control Functions Four-directional Movement, Turning, Static Standing, Squatting Down In-place, Robot Height Adjustment, Stand Up After a Fall, and Ground Clearance Detection Four-directional Movement, Turning, Static Standing, Squatting Down In-place, Robot Height Adjustment, Stand Up After a Fall, and Ground Clearance Detection
Dual-Arms Teleoperation Method - VR device (Oculus Quest 3)
Data Collection and Storage - ✓
Dual-Arms Safety Boundary Protection - ✓

Dual-Arms Configuration

Maximum End Effector Load Maximum: 5kg per arm
Extended: 3kg per arm
Maximum End Effector Speed 5m/s
Maximum End Effector Acceleration 36m/s²
Repeat Positioning Accuracy ± 0.5mm
Teleoperation Delay 100ms
End Effector Type Gripper / Dexterous hand
Gripper Performance Gripping Force: 20N Maximum
Gripping Width: 85mm

Sole/Wheeled Configuration

Maximum Movement Speed Sole: 2~3m/s
Wheeled: 3~5m/s
Maximum Climbing Slope Sole: 15°
Wheeled: 30°
Maximum Step Height 20cm
Maximum Load Capacity 30kg for flat ground walking
20kg for stair climbing

Electrical Parameters

Battery Output Voltage 46.8V
Maximum Battery Power 2,800W
Support for Battery Replacement ✓
Battery Type Ternary lithium battery
Battery Capacity 9Ah
Charging Power 542W
Charging Input Voltage/Current 100~240V/8A
Charging Output Voltage/Current 54.275V/10A
Charging Time 20-80% Charge: 30min
20-100% Charge: 54min

Sensor Configuration

LimX Dynamics TRON 2 Standard Edition Education Edition
Waist RGBD Camera ✓ ✓
IMU (Inertial Measurement Unit) ✓ ✓
Head RGBD Camera - ✓ (only for Dual-Arms)
Wrist RGBD Camera - ✓ (only for Dual-Arms)

Communication Interface

Ethernet Port ✓ (1 port)
USB3.0 Port ✓ (1 port)
EtherCAT Port ✓ (2 ports)
RS485 Port ✓ (1 port)

Peripheral Charging Interfaces

12V Power Output Port ✓ (1 port)
24V Power Output Port ✓ (1 port)
48V Power Output Port ✓ (1 port)

Power Supply Port

External Power Supply Port ✓ (1 port)

AI Computing Box

LimX Dynamics TRON 2 Standard Edition Education Edition
CPU - 11th Gen Intel® Core™ i7-1165G7 2.80GHz
Storage Capacity - 2TB
Interfaces - 4x ETH, 4x USB 3.0, 1x 24V input, 1x 12V output

Software Compatibility & Developer Tools

LimX Dynamics TRON 2 Standard Edition Education Edition
SDK - ✓
Robot Management Platform ✓ ✓
Data Platform - ✓
Simulation Platform - ✓
Software Compatibility - Compatible with Python, C++ development environments; Supports ROS1/ROS2 systems

Other

Notes * Data measured in LimX Dynamics laboratory; actual values may vary with environment, usage, device state, and software version.
** Products iterate continuously; appearance and configuration may change. Please confirm with sales before purchase. Page data may be affected by environment, usage, device state, and software version; please refer to actual performance.
"–" = Not available
"o" = Optional
"✓" = Included
